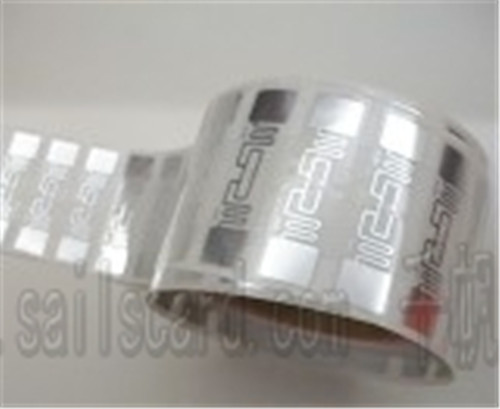

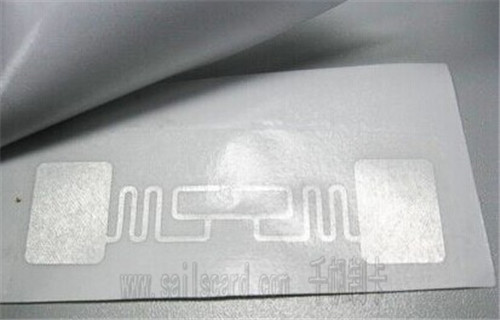

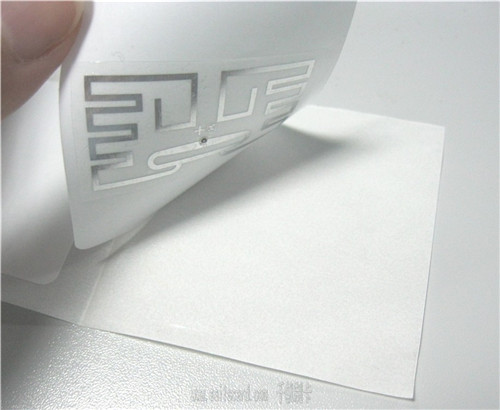

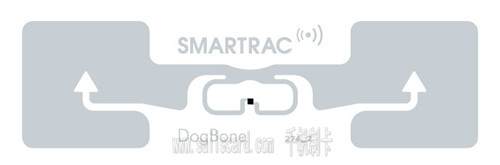

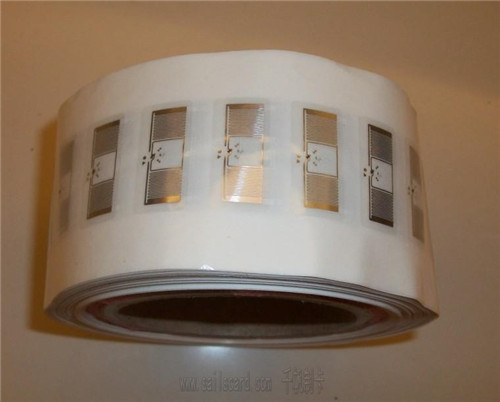

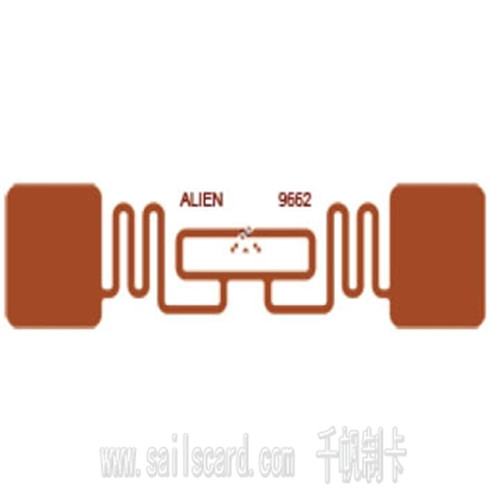

1) Introduction to UHF 6C RFID inlay/label

UHF 6C Electronic inlay/label is a kind of UHF tag with the frequency of 860-960MHZ, which can be made into hard card or flexible inlay/label. UHF 6C Electronic Tag Chip has two typical representatives: UCODE EPC G2 (SL3 ICS10, called GEN2 in China) made by Holland NXP and RI-UHF-OOC02-03 made by Texas Instruments (TI).

UHF 6C Electronic Tag is usually applied to remote reading and writing, e.g.: parking lot, channel, etc. systems. The read-write distance ranges from 1m to100m. Actual situation depends on the configuration of reader-writer and coil. The frequency is 915.

2). Technical Parameters of GEN2 Series Electronic inlay/label

1. Operating Frequency: 860-960MHz

2. Storage Capacity: Generally it is 96-digit EPC (G2) or 240-digit EPC (G2XL/G2XM)

3. Protocol Standard: ISO 18000-6 Type C

4. Erasing Life: >100,000 times

5. Data Storage Time: 10 years

3) .Material &  Dimension

PET material

Size of inlay/label:75mm * 22mm

Size of antenna:70mm * 17mm

The inlay can be embedded into credit card size of pvc cards,or customized size of tag
